Photoluminescent Tapes
General Description
The A-SPE Photoluminescent Tapes is produced in accordance to Requirements of SOLAS 74 Convention, as amended by Reg. II-2/13 - IMO Res. MSC.98(73) (FSS Code) 11 - ISO 15370 (2001), fully in compliance & exceeds Requirements of DIN 67510, Part 1.
The A-SPE Photoluminescent Tapes are manufactured as self-adhesive flexible material with the high intensive Liuminous properties. After its exposure to natural or artificial lighting the material can undergo the processof being recharged with the light repeatedly.
The material is non-toxic & non-radioactive; it is phosphorus & lead free. It is not harmful to health or the environment.
Environmental properties
| Service temperature | -30°C to +70°C |
| Application temperature | -20°C to +50°C |
| Fungus resistance | Resistant to fungi |
| Solvent resistance |
Resistant to gasoline, grease, mild alkaline and acids |
| Flammability | Self-extinguishing |
| Shrinkage |
Same as for normal self-adhesive vinyl products |
| Product life |
Indoor - in excess of 5 years |
| Shelf life |
Under normal conditions for self-adhesive vinyl, approximately 1-2 years |
Physical properties
| Thickness | 0,38 mm (without silicon paper) |
| Thickness | 0,49 mm (with silicon paper) |
| Weight | 0,7 kg / m2 |
| Width | 40 or 80 mm (other on special demand) |
| Length | 10 m (other on special demand) |

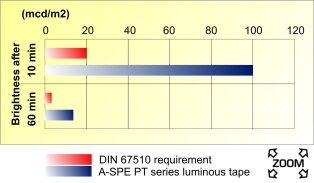

Afterglow performance
|
Brightness (in mcd / m2) after |
Decay time to 0,3 mcd / m2 |
||
|
10 min |
30 min |
60 min |
|
|
105 mcd |
31 mcd |
14 mcd |
1800 min |
Tested in accordance with DIN 67510 - charged at 1000 lux for 5 minutes.
 |
Plain safety tape, for general identification use in the way of the rescue ways Ordering code: PT-4P (roll 40 mm x 10 m) & PT-8P (roll 80 mm x 10 m) |
 |
You can order plain safety tape with the additional transparent stickers (evacuation exit left and right). Ordering code: PT-4PS (roll 40 mm x 10 m; Tape + 20 Stickers) & PT-8PS (roll 80 mm x 10 m; Tape + 20 Stickers) |
 |
Green diagonal tape - for indicating safe areas Ordering code: PT-4G (roll 40 mm x 10 m) & PT-8G (roll 80 mm x 10 m) |
 |
Red diagonal tape - for marking fire hazard areas Ordering code: PT-4R (roll 40 mm x 10 m) & PT-8R (roll 80 mm x 10 m) |
 |
Black diagonal tape - for marking hazard areas and obstacles Ordering code: PT-4B (roll 40 mm x 10 m) & PT-8B (roll 80 mm x 10 m) |
 |
Arrow Safety tape - for marking Escape Routes Ordering code: PT-4A (roll 40 mm x 10 m) & PT-8A (roll 80 mm x 10 m) |
 |
Way finding tape - for safe routes to exits (direction right) Ordering code: PT-4WR (roll 40 mm x 10 m) & PT-8WR (roll 80 mm x 10 m) |
 |
Way finding tape - for safe routes to exits (direction left) Ordering code: PT-4WL (roll 40 mm x 10 m) & PT-8WL (roll 80 mm x 10 m) |
